Unweighted Graphs: Definition, Applications, Advantages, and Disadvantages

Unweighted graphs are a fundamental concept in graph theory, which is a major branch of discrete mathematics and computer science. Unlike weighted graphs where edges have a numerical value representing a cost or distance, in unweighted graphs, edges simply represent the existence of a relationship between two nodes or vertices. The simplicity of these graphs makes them particularly useful in a variety of real-world applications.

In this article, we will dive deep into what unweighted graphs are, explore their applications, examine their advantages and disadvantages, and also look at their implementation in different programming languages. Unweighted graphs, while straightforward, are incredibly versatile, offering insights into problems related to connectivity, relationships, and interactivity.

What is an Unweighted Graph?

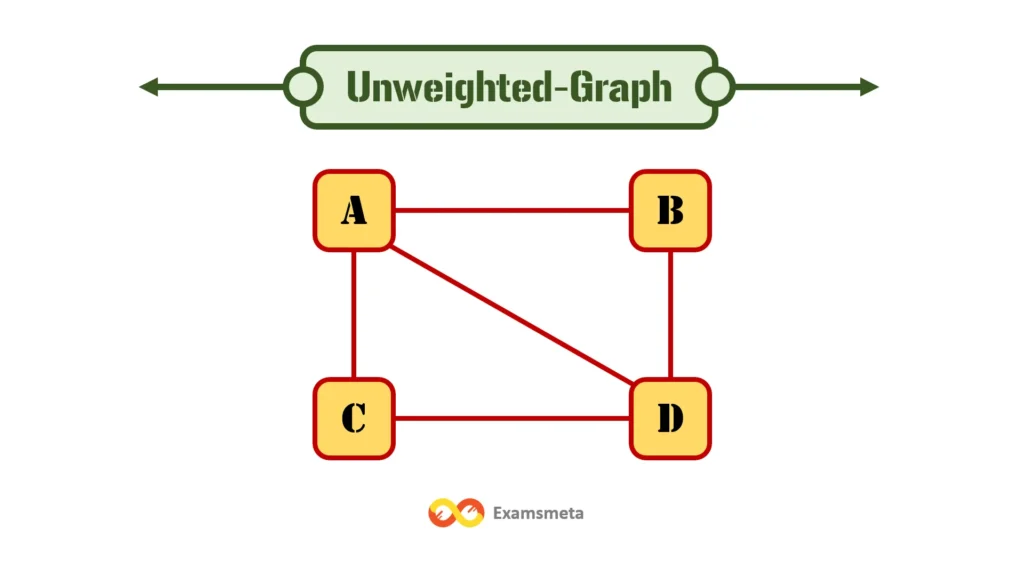

An Unweighted Graph is a type of graph where the edges between the nodes do not carry any additional information like weight, distance, or cost. The edges only represent a connection between two vertices, making it a fundamental structure for various algorithms and computational processes.

In formal terms, an unweighted graph can be defined as G = (V, E) where:

V is the set of vertices or nodes.
E is the set of edges connecting pairs of vertices.

Types of Unweighted Graphs

Unweighted graphs can be classified into two primary categories based on the nature of the edges:

Undirected Unweighted Graph: In this type of graph, the edges have no direction, meaning the connection between any two vertices is bidirectional. For instance, if there’s an edge between vertex A and vertex B, you can move from A to B and from B to A freely.
Directed Unweighted Graph (Digraph): In a directed graph, the edges have a direction, indicating a one-way connection. If there is an edge from A to B, you can move from A to B, but not from B to A unless a reverse edge exists.

Real-Life Analogy

Consider a social network where each person is a node, and an edge represents whether two people are friends. In this case, the friendship between two individuals is binary – either they are connected (friends), or they are not. The strength of their friendship is irrelevant in this model, which is why it is represented by an unweighted graph.

Applications of Unweighted Graphs

The simplicity of unweighted graphs makes them applicable in a wide range of fields. These graphs are particularly useful when the magnitude or weight of the relationship between nodes is irrelevant or unavailable.

Social Networks

Unweighted graphs are widely used in modeling social networks. In these graphs, nodes represent individuals, and edges represent social relationships. The edges do not represent how “strong” or “weak” the relationships are but simply whether a connection exists between individuals.

For instance, consider Facebook friend connections or LinkedIn connections. The graph only needs to show whether two people are connected, not how strong the connection is.

Web Page Link Structures

On the World Wide Web, websites are nodes, and hyperlinks between them represent edges. This is often modeled as an unweighted graph where the presence of a hyperlink from one web page to another is of interest, not the strength of that connection.

Computation Flow in Programs

In many compilation and execution processes, the order of operations or the relationships between different functions can be represented as an unweighted graph. This is used to determine dependencies and ensure that all necessary steps are followed in the correct sequence.

Image Segmentation

In image processing, pixels can be represented as nodes in a graph, and adjacent pixels can be connected by edges. This is useful in image segmentation, where the goal is to partition an image into distinct regions.

State Spaces in Decision-Making

Unweighted graphs are used in artificial intelligence to represent the possible states of a system and the transitions between these states. In decision-making and problem-solving, nodes represent states, and edges represent possible actions leading to transitions from one state to another.

Computer Networks

In networking, unweighted graphs can represent connections between computers, servers, or other devices. The presence of an edge indicates a communication link between two devices, without specifying bandwidth or latency.

Real-Time Applications of Unweighted Graphs

Unweighted graphs are not just theoretical constructs; they have practical applications in real-time systems as well.

Puzzles

Certain puzzles like mazes or the classic “Knights Tour” in chess can be represented as unweighted graphs, where each possible move forms an edge between the nodes.

Circuit Diagrams

In electrical engineering, simple circuit diagrams can be modeled using unweighted graphs where each connection between components (like resistors, capacitors, etc.) forms an edge.

Hamiltonian Graphs and Genome Mapping

In genome mapping, a Hamiltonian graph is used to find paths that visit each node exactly once. This has practical applications in bioinformatics, especially in assembling genome sequences from DNA fragments.

Social Media

Unweighted graphs are commonly used in social media platforms to analyze connectivity. For example, Twitter might use an unweighted graph to determine if two users follow each other, while the connection strength (number of interactions) may be irrelevant for certain analyses.

Advantages of Unweighted Graphs

While unweighted graphs may seem simplistic, they offer several important advantages:

Simple to Understand and Implement

Unweighted graphs are easy to grasp conceptually. The absence of edge weights simplifies both the representation and processing of the graph.

Efficient in Storage

Unweighted graphs are space-efficient as they only need to store the presence or absence of an edge between two nodes. This is in contrast to weighted graphs, which must store additional data about the weights.

Optimal for Certain Algorithms

Unweighted graphs are optimal for algorithms like Depth-First Search (DFS) and Breadth-First Search (BFS). These algorithms only need to explore the connections between nodes without considering any additional costs or weights.

Applicable in Many Domains

From social networks to computational modeling, unweighted graphs are useful in domains where the magnitude of relationships doesn’t matter.

Useful for Tree Data Structures

Unweighted graphs can be used to represent trees, which are a special kind of graph where nodes have a hierarchical relationship.

Visualization and Interpretation

Unweighted graphs are simpler to visualize because they do not involve complex numerical values. This simplicity makes it easier to analyze connectivity patterns.

Disadvantages of Unweighted Graphs

Despite their advantages, unweighted graphs also come with certain limitations:

Cannot Handle Weighted Relationships

Unweighted graphs cannot model scenarios where relationships between nodes have a magnitude or cost. For instance, they are not suitable for shortest path problems where the distances between nodes must be considered.

Less Informative

Unweighted graphs lack the detail provided by weighted graphs. In cases where the strength or cost of a connection is crucial, such as in transportation networks, unweighted graphs are insufficient.

Limited Applicability

For certain real-world problems, such as flight networks or supply chains, where the distances or costs between nodes matter, unweighted graphs are not appropriate.

Implementing Unweighted Graphs in Various Programming Languages

Python Example

Here’s how to represent and implement an unweighted graph using Python:

class Graph:
    def __init__(self):
        self.graph = {}

    def add_edge(self, u, v):
        if u in self.graph:
            self.graph[u].append(v)
        else:
            self.graph[u] = [v]

    def display_graph(self):
        for node in self.graph:
            print(f"{node}: {self.graph[node]}")

# Create an unweighted graph
g = Graph()
g.add_edge('A', 'B')
g.add_edge('A', 'C')
g.add_edge('B', 'D')
g.add_edge('C', 'D')

# Display the graph
g.display_graph()

Output:

A: ['B', 'C']
B: ['D']
C: ['D']

C++ Example

Here’s how to create an unweighted graph in C++:

#include <iostream>
#include <list>
using namespace std;

class Graph {
    int V;
    list<int> *adj;
public:
    Graph(int V);
    void addEdge(int v, int w);
    void displayGraph();
};

Graph::Graph(int V) {
    this->V = V;
    adj = new list<int>[V];
}

void Graph::addEdge(int v, int w) {
    adj[v].push_back(w);
}

void Graph::displayGraph() {
    for (int v = 0; v < V; ++v) {
        cout << v << ": ";
        for (auto x : adj[v])
           cout << x << " ";
        cout << endl;
    }
}

int main() {
    Graph g(4);
    g.addEdge(0, 1);
    g.addEdge(0, 2);
    g.addEdge(1, 2);
    g.addEdge(2, 0);
    g.addEdge(2, 3);
    g.addEdge(3, 3);

    g.displayGraph();
    return 0;
}

Output:

C# Example

using System;
using System.Collections.Generic;

class Graph {
    private Dictionary<string, List<string>> adjList;

    public Graph() {
        adjList = new Dictionary<string, List<string>>();
    }

    public void AddEdge(string u, string v) {
        if (!adjList.ContainsKey(u)) {
            adjList[u] = new List<string>();
        }
        adjList[u].Add(v);
    }

    public void DisplayGraph() {
        foreach (var node in adjList) {
            Console.Write(node.Key + ": ");
            foreach (var neighbor in node.Value) {
                Console.Write(neighbor + " ");
            }
            Console.WriteLine();
        }
    }
}

class Program {
    static void Main() {
        Graph g = new Graph();
        g.AddEdge("A", "B");
        g.AddEdge("A", "C");
        g.AddEdge("B", "D");

        g.DisplayGraph();
    }
}

Output:

A: B C
B: D

Additional Implementations in Other Languages:

Java: You can represent an unweighted graph in Java using a HashMap or ArrayList of edges.
PHP: In PHP, an associative array can be used to represent the graph’s adjacency list.
JavaScript: In JavaScript, objects or Map can store the nodes, and each key-value pair can represent the edges.

Video credit: Mary Elaine Califf

Conclusion

Unweighted graphs play a crucial role in a wide array of computational problems. Their simplicity, ease of implementation, and versatility make them indispensable in fields such as social networking, web page linking, and AI decision-making. Despite their limitations, particularly in applications requiring weights or costs, unweighted graphs remain a foundational tool for understanding connectivity and relationships.

Whether you are working on data structures, algorithm design, or real-world applications like networking or puzzles, unweighted graphs provide an elegant and efficient solution to many common problems. Their implementation in various programming languages further demonstrates their utility and flexibility, making them an essential concept in both theoretical and practical aspects of computer science.

Frequently Asked Questions (FAQs) on Unweighted Graphs

What is an unweighted graph?

An unweighted graph is a type of graph where the edges do not have any numerical value or “weight” attached to them. The edges simply indicate a relationship or connection between two vertices (nodes). Unlike weighted graphs, where edges have associated costs, distances, or other metrics, unweighted graphs focus solely on whether or not two vertices are connected.

For example, consider a simple graph where people are vertices and edges indicate whether two people know each other. If person A knows person B, there is an edge between the vertices representing A and B.

Python Example:

class Graph:
    def __init__(self):
        self.graph = {}

    def add_edge(self, u, v):
        if u in self.graph:
            self.graph[u].append(v)
        else:
            self.graph[u] = [v]

    def display_graph(self):
        for node in self.graph:
            print(f"{node}: {self.graph[node]}")

# Create an unweighted graph
g = Graph()
g.add_edge('A', 'B')
g.add_edge('A', 'C')
g.add_edge('B', 'D')

g.display_graph()

Output:

A: ['B', 'C']
B: ['D']

What is the difference between weighted and unweighted graphs?

The main difference lies in the presence of weights on the edges. In a weighted graph, each edge has an associated numerical value that may represent distance, cost, or any other measure. In an unweighted graph, the edges simply indicate a connection between vertices, without any additional information about the strength, distance, or cost of the connection.

C++ Example for Weighted and Unweighted Graphs:

#include <iostream>
#include <list>
using namespace std;

class UnweightedGraph {
    int V;
    list<int> *adj;
public:
    UnweightedGraph(int V);
    void addEdge(int v, int w);
    void displayGraph();
};

UnweightedGraph::UnweightedGraph(int V) {
    this->V = V;
    adj = new list<int>[V];
}

void UnweightedGraph::addEdge(int v, int w) {
    adj[v].push_back(w);
}

void UnweightedGraph::displayGraph() {
    for (int v = 0; v < V; ++v) {
        cout << v << ": ";
        for (auto x : adj[v])
            cout << x << " ";
        cout << endl;
    }
}

int main() {
    UnweightedGraph g(4);
    g.addEdge(0, 1);
    g.addEdge(0, 2);
    g.addEdge(1, 2);
    g.addEdge(2, 3);

    g.displayGraph();
    return 0;
}

Output:

0: 1 2
1: 2
2: 3

In this example, there are no weights associated with the edges.

How is an unweighted graph represented in a computer?

An unweighted graph can be represented using several methods, including:

Adjacency Matrix: A 2D array where each cell (i, j) is 1 if there is an edge between the vertex i and vertex j, and 0 otherwise.
Adjacency List: An array of lists where each index represents a vertex, and the list at each index contains the vertices connected to it.
Edge List: A list of pairs where each pair represents an edge between two vertices.

C# Example Using Adjacency List:

using System;
using System.Collections.Generic;

class Graph {
    private Dictionary<int, List<int>> adjList;

    public Graph() {
        adjList = new Dictionary<int, List<int>>();
    }

    public void AddEdge(int u, int v) {
        if (!adjList.ContainsKey(u)) {
            adjList[u] = new List<int>();
        }
        adjList[u].Add(v);
    }

    public void DisplayGraph() {
        foreach (var node in adjList) {
            Console.Write(node.Key + ": ");
            foreach (var neighbor in node.Value) {
                Console.Write(neighbor + " ");
            }
            Console.WriteLine();
        }
    }
}

class Program {
    static void Main() {
        Graph g = new Graph();
        g.AddEdge(0, 1);
        g.AddEdge(0, 2);
        g.AddEdge(1, 2);
        g.AddEdge(2, 3);

        g.DisplayGraph();
    }
}

Output:

0: 1 2
1: 2
2: 3

What are the applications of unweighted graphs?

Unweighted graphs are used in a variety of applications where the magnitude of relationships doesn’t matter. Some notable applications include:

Social networks: Representing users as vertices and friendships as edges.
Network connectivity: Modeling computer networks where devices are connected without bandwidth considerations.
Web page link analysis: Representing web pages as nodes and hyperlinks as edges.
AI and game design: Representing possible moves or states in a game.
Decision-making: Using state spaces in decision processes.

For example, in social networks like Facebook or LinkedIn, whether two users are connected can be modeled with an unweighted graph where edges represent friendships or professional connections.

What algorithms work best with unweighted graphs?

Unweighted graphs are frequently used in algorithms where weights do not play a role. Some of the most common algorithms include:

Breadth-First Search (BFS): This algorithm explores nodes level by level and is often used to find the shortest path in unweighted graphs.
Depth-First Search (DFS): DFS explores a graph by going as deep as possible along one path before backtracking.
Graph Traversal Algorithms: These include connected components or cycle detection algorithms.
Graph Coloring: Used in scheduling problems, map coloring, and other areas where nodes need to be assigned labels.

Java Example for BFS:

import java.util.*;

public class Graph {
    private LinkedList<Integer> adj[];

    Graph(int v) {
        adj = new LinkedList[v];
        for (int i = 0; i < v; ++i)
            adj[i] = new LinkedList();
    }

    void addEdge(int v, int w) {
        adj[v].add(w);
    }

    void BFS(int s) {
        boolean visited[] = new boolean[adj.length];
        LinkedList<Integer> queue = new LinkedList<>();

        visited[s] = true;
        queue.add(s);

        while (queue.size() != 0) {
            s = queue.poll();
            System.out.print(s + " ");

            Iterator<Integer> i = adj[s].listIterator();
            while (i.hasNext()) {
                int n = i.next();
                if (!visited[n]) {
                    visited[n] = true;
                    queue.add(n);
                }
            }
        }
    }

    public static void main(String args[]) {
        Graph g = new Graph(4);

        g.addEdge(0, 1);
        g.addEdge(0, 2);
        g.addEdge(1, 2);
        g.addEdge(2, 0);
        g.addEdge(2, 3);
        g.addEdge(3, 3);

        System.out.println("Breadth First Traversal (starting from vertex 2):");
        g.BFS(2);
    }
}

Output:

Breadth First Traversal (starting from vertex 2):
2 0 3 1

How can you represent an unweighted graph using an adjacency matrix?

In an adjacency matrix, the graph is represented by a 2D array where the rows and columns correspond to vertices and a cell at position (i, j) contains 1 if there is an edge between the vertex i and vertex j, and 0 otherwise.

PHP Example:

$vertices = 4;
$graph = array_fill(0, $vertices, array_fill(0, $vertices, 0));

function addEdge(&$graph, $u, $v) {
    $graph[$u][$v] = 1;
    $graph[$v][$u] = 1; // For undirected graph
}

function displayGraph($graph) {
    foreach ($graph as $row) {
        echo implode(" ", $row) . PHP_EOL;
    }
}

addEdge($graph, 0, 1);
addEdge($graph, 0, 2);
addEdge($graph, 1, 2);
addEdge($graph, 2, 3);

displayGraph($graph);

Output:

What is a directed unweighted graph?

A directed unweighted graph (also called a digraph) is a graph where each

edge has a direction, indicating the connection goes from one vertex to another. In such graphs, the edge from u to v does not necessarily imply an edge from v to u.

For example, if we represent a Twitter follow relationship as a directed graph, an edge from user A to user B means A follows B, but B does not necessarily follow A.

How does BFS work in unweighted graphs?

Breadth-first search (BFS) in an unweighted graph explores the graph in layers. Starting from a node, it visits all its neighbors, then their neighbors, and so on. BFS is particularly useful for finding the shortest path between two vertices in an unweighted graph.

What is DFS, and how is it used in unweighted graphs?

Depth-first search (DFS) explores the graph by going as deep as possible along one branch before backtracking. It’s useful for tasks like detecting cycles, finding connected components, and topological sorting.

How can unweighted graphs be used to detect cycles?

In graph theory, detecting cycles in a graph is an important task. A cycle occurs when you can start at a vertex and traverse a series of edges that eventually bring you back to the starting vertex. In unweighted graphs, you can detect cycles using algorithms such as Depth-First Search (DFS).

For undirected graphs, a cycle exists if DFS encounters an already visited vertex that isn’t the parent of the current vertex. In directed graphs, a back edge to a visited vertex indicates a cycle.

Python Example for Cycle Detection in an Undirected Graph Using DFS:

class Graph:
    def __init__(self, vertices):
        self.graph = {i: [] for i in range(vertices)}

    def add_edge(self, u, v):
        self.graph[u].append(v)
        self.graph[v].append(u)  # For undirected graph

    def is_cyclic_util(self, v, visited, parent):
        visited[v] = True

        for i in self.graph[v]:
            if not visited[i]:
                if self.is_cyclic_util(i, visited, v):
                    return True
            elif parent != i:
                return True
        return False

    def is_cyclic(self):
        visited = [False] * len(self.graph)
        for i in range(len(self.graph)):
            if not visited[i]:
                if self.is_cyclic_util(i, visited, -1):
                    return True
        return False


# Create graph and add edges
g = Graph(5)
g.add_edge(0, 1)
g.add_edge(1, 2)
g.add_edge(2, 0)  # Cycle here
g.add_edge(1, 3)
g.add_edge(3, 4)

if g.is_cyclic():
    print("Graph contains cycle")
else:
    print("Graph does not contain cycle")

Output:

Graph contains cycle

In this example, a cycle is detected because the path from vertex 0 to vertex 2 returns back to vertex 0.

How are unweighted graphs applied in web page link analysis?

Unweighted graphs are frequently used to represent the World Wide Web. Each webpage is represented as a vertex, and an edge between two vertices indicates a hyperlink between two web pages. This model is essential in search engine algorithms like PageRank, which evaluates the importance of a web page by examining how many pages link to it.

In such a graph, edges are directed, representing the direction of the hyperlink. Unweighted graphs are appropriate here because the mere presence of a link is important, not its cost or weight.

C++ Example Representing Web Pages and Links:

#include <iostream>
#include <list>
using namespace std;

class WebGraph {
    int V;                  // Number of vertices
    list<int> *adj;          // Adjacency list
public:
    WebGraph(int V);         // Constructor
    void addLink(int v, int w);  // Add a link
    void displayGraph();     // Display the graph
};

WebGraph::WebGraph(int V) {
    this->V = V;
    adj = new list<int>[V];
}

void WebGraph::addLink(int v, int w) {
    adj[v].push_back(w);   // Directed link from v to w
}

void WebGraph::displayGraph() {
    for (int i = 0; i < V; ++i) {
        cout << "Webpage " << i << " links to: ";
        for (auto x : adj[i])
            cout << x << " ";
        cout << endl;
    }
}

int main() {
    WebGraph g(4);
    g.addLink(0, 1);  // Webpage 0 links to 1
    g.addLink(0, 2);  // Webpage 0 links to 2
    g.addLink(1, 2);  // Webpage 1 links to 2
    g.addLink(2, 0);  // Webpage 2 links to 0
    g.addLink(2, 3);  // Webpage 2 links to 3

    g.displayGraph();
    return 0;
}

Output:

Webpage 0 links to: 1 2
Webpage 1 links to: 2
Webpage 2 links to: 0 3
Webpage 3 links to:

How are unweighted graphs used in Artificial Intelligence (AI)?

In artificial intelligence (AI), unweighted graphs are utilized in various ways to represent state spaces, decision trees, and search problems. A typical use case is representing the possible moves in a game or problem-solving process. Each state is a vertex, and an edge between vertices indicates a possible transition from one state to another.

For example, in puzzle-solving algorithms (e.g., the 8-puzzle), the tiles’ positions can be represented as vertices, and the edges represent valid moves. AI algorithms like Breadth-First Search (BFS) and Depth-First Search (DFS) are used to explore these graphs.

How do you implement graph traversal in unweighted graphs?

Graph traversal algorithms such as BFS and DFS are crucial in unweighted graphs. Traversal refers to visiting all the nodes or vertices of a graph in a systematic way. BFS explores all neighbors of a node first, while DFS explores as deep as possible before backtracking.

JavaScript Example for BFS:

class Graph {
    constructor() {
        this.adjList = new Map();
    }

    addEdge(v, w) {
        if (!this.adjList.has(v)) this.adjList.set(v, []);
        this.adjList.get(v).push(w);
    }

    bfs(startingNode) {
        let visited = new Set();
        let queue = [];

        visited.add(startingNode);
        queue.push(startingNode);

        while (queue.length > 0) {
            let node = queue.shift();
            console.log(node);

            let neighbors = this.adjList.get(node);
            if (neighbors) {
                neighbors.forEach((neighbor) => {
                    if (!visited.has(neighbor)) {
                        visited.add(neighbor);
                        queue.push(neighbor);
                    }
                });
            }
        }
    }
}

let g = new Graph();
g.addEdge(0, 1);
g.addEdge(0, 2);
g.addEdge(1, 2);
g.addEdge(2, 3);

console.log("Breadth First Traversal:");
g.bfs(0);

Output:

Breadth First Traversal:
0
1
2
3

Here, BFS explores the graph layer by layer, starting from node 0.

What is the adjacency matrix of an unweighted graph?

An adjacency matrix is a 2D array where the rows and columns represent vertices, and each cell contains either 1 (if there’s an edge between two vertices) or 0 (if no edge exists). For unweighted graphs, the matrix only shows connections between vertices, without any additional information about costs or distances.

How do you implement DFS in an unweighted graph?

Depth-First Search (DFS) in an unweighted graph explores as far as possible down one path before backtracking. It’s often used in cycle detection, topological sorting, and solving connectivity problems.

C++ Example for DFS:

#include <iostream>
#include <list>
using namespace std;

class Graph {
    int V;                  // Number of vertices
    list<int> *adj;          // Adjacency list
    void DFSUtil(int v, bool visited[]);  // Recursive DFS utility
public:
    Graph(int V);
    void addEdge(int v, int w);
    void DFS(int v);         // DFS traversal
};

Graph::Graph(int V) {
    this->V = V;
    adj = new list<int>[V];
}

void Graph::addEdge(int v, int w) {
    adj[v].push_back(w);     // Add w to v's list
}

void Graph::DFSUtil(int v, bool visited[]) {
    visited[v] = true;       // Mark the current node as visited
    cout << v << " ";

    for (auto i = adj[v].begin(); i != adj[v].end(); ++i)
        if (!visited[*i])
            DFSUtil(*i, visited);
}

void Graph::DFS(int v) {
    bool *visited = new bool[V];  // Initialize all vertices as not visited
    for (int i = 0; i < V; i++)
        visited[i] = false;

    DFSUtil(v, visited);
}

int main() {
    Graph g(4);
    g.addEdge(0, 1);
    g.addEdge(0, 2);
    g.addEdge(1, 2);
    g.addEdge(2, 0);
    g

.addEdge(2, 3);

    cout << "DFS starting from vertex 2:\n";
    g.DFS(2);

    return 0;
}

Output:

DFS starting from vertex 2:
2 0 1 3

Here, DFS starts at the vertex 2 and explores as deeply as possible before backtracking.

How do you represent unweighted graphs using adjacency lists?

An adjacency list is a more space-efficient way of representing a graph compared to an adjacency matrix. Each vertex has a list of other vertices to which it is directly connected. This is particularly useful for sparse graphs, where many possible edges are missing.

Java Example for Adjacency List Representation:

import java.util.*;

class Graph {
    private int V;
    private LinkedList<Integer> adjList[];

    Graph(int V) {
        this.V = V;
        adjList = new LinkedList[V];
        for (int i = 0; i < V; ++i) adjList[i] = new LinkedList<>();
    }

    void addEdge(int v, int w) {
        adjList[v].add(w);
    }

    void printGraph() {
        for (int i = 0; i < V; ++i) {
            System.out.print(i + " -> ");
            for (Integer node : adjList[i])
                System.out.print(node + " ");
            System.out.println();
        }
    }

    public static void main(String args[]) {
        Graph g = new Graph(4);
        g.addEdge(0, 1);
        g.addEdge(0, 2);
        g.addEdge(1, 2);
        g.addEdge(2, 0);
        g.addEdge(2, 3);

        g.printGraph();
    }
}

Output:

0 -> 1 2
1 -> 2
2 -> 0 3
3 ->

This adjacency list representation uses less memory than an adjacency matrix for sparse graphs.

Can unweighted graphs represent bipartite graphs?

Yes, an unweighted graph can represent a bipartite graph, which is a graph whose vertices can be divided into two disjoint and independent sets, such that no two vertices within the same set are adjacent. Bipartite graphs have applications in matching problems, such as matching workers to jobs or students to courses.

Bipartiteness can be tested using BFS by trying to color the graph with two colors and checking for conflicts.

How are unweighted graphs used in network routing?

In computer networks, unweighted graphs are used to represent the connections between devices where the existence of a direct link between devices is more important than the cost. For example, in LANs (Local Area Networks), devices connected by switches or routers can be represented by an unweighted graph. Each device is a vertex, and an edge indicates a direct connection.

20. How do you perform topological sorting on an unweighted graph?

Topological sorting applies only to Directed Acyclic Graphs (DAGs) and provides a linear ordering of vertices such that for every directed edge u -> v , the vertex u comes before v in the ordering. This is useful in tasks like task scheduling, where some jobs must be completed before others.

Topological sorting can be performed using DFS.

C# Example for Topological Sorting:

using System;
using System.Collections.Generic;

class Graph {
    private int V;
    private List<int>[] adj;

    Graph(int v) {
        V = v;
        adj = new List<int>[v];
        for (int i = 0; i < v; i++) adj[i] = new List<int>();
    }

    public void AddEdge(int v, int w) {
        adj[v].Add(w);
    }

    void TopologicalSortUtil(int v, bool[] visited, Stack<int> stack) {
        visited[v] = true;

        foreach (var i in adj[v])
            if (!visited[i])
                TopologicalSortUtil(i, visited, stack);

        stack.Push(v);
    }

    public void TopologicalSort() {
        Stack<int> stack = new Stack<int>();
        bool[] visited = new bool[V];

        for (int i = 0; i < V; i++)
            if (!visited[i])
                TopologicalSortUtil(i, visited, stack);

        while (stack.Count > 0)
            Console.Write(stack.Pop() + " ");
    }

    public static void Main() {
        Graph g = new Graph(6);
        g.AddEdge(5, 2);
        g.AddEdge(5, 0);
        g.AddEdge(4, 0);
        g.AddEdge(4, 1);
        g.AddEdge(2, 3);
        g.AddEdge(3, 1);

        Console.WriteLine("Topological Sort:");
        g.TopologicalSort();
    }
}

Output:

Topological Sort:
5 4 2 3 1 0

This output shows the topological order of the vertices in the graph.

How are unweighted graphs represented in memory using data structures?

Unweighted graphs can be represented in memory using adjacency matrices or adjacency lists. The choice of representation depends on factors like the graph’s density, memory efficiency, and algorithmic requirements.

Adjacency Matrix: This is a 2D array where rows and columns represent vertices, and each entry is either 1 (indicating an edge) or 0 (no edge). The matrix is more efficient when the graph is dense (many edges). However, it can consume a lot of memory for sparse graphs. C Example (Adjacency Matrix Representation):

  #include <stdio.h>

  #define V 4

  void printGraph(int graph[V][V]) {
      for (int i = 0; i < V; i++) {
          for (int j = 0; j < V; j++) {
              printf("%d ", graph[i][j]);
          }
          printf("\n");
      }
  }

  int main() {
      int graph[V][V] = { {0, 1, 0, 0},
                          {1, 0, 1, 0},
                          {0, 1, 0, 1},
                          {0, 0, 1, 0} };

      printGraph(graph);
      return 0;
  }

Output:

Adjacency List: This is an array of lists, where each index of the array represents a vertex and stores a list of adjacent vertices. It is more memory-efficient for sparse graphs. Python Example (Adjacency List Representation):

  class Graph:
      def __init__(self, vertices):
          self.V = vertices
          self.adj_list = [[] for _ in range(vertices)]

      def add_edge(self, u, v):
          self.adj_list[u].append(v)
          self.adj_list[v].append(u)  # Undirected graph

      def print_graph(self):
          for i in range(self.V):
              print(f"Vertex {i}: ", self.adj_list[i])

  g = Graph(4)
  g.add_edge(0, 1)
  g.add_edge(1, 2)
  g.add_edge(2, 3)

  g.print_graph()

Output:

  Vertex 0:  [1]
  Vertex 1:  [0, 2]
  Vertex 2:  [1, 3]
  Vertex 3:  [2]

Adjacency matrices are simple to implement but can be inefficient for large graphs, while adjacency lists are more space-efficient for graphs with fewer edges.

How are unweighted graphs used in computer networks?

In computer networks, unweighted graphs represent topologies, where each node represents a computer or router, and each edge represents a physical or logical connection between nodes. These graphs help visualize and optimize the structure of networks, especially when the connection costs (latency, bandwidth) between nodes are uniform or not considered.

For example, Local Area Networks (LANs) and Peer-to-Peer (P2P) networks can be modeled using unweighted graphs. Routing algorithms such as Distance Vector and Link State can utilize this structure to find paths between nodes.

What are the main differences between unweighted and weighted graphs?

The primary difference between unweighted and weighted graphs is the presence of edge weights, which represent costs, distances, or capacities between two nodes.

Unweighted Graphs: Every edge is treated equally, and algorithms only care about the presence or absence of an edge.
Example: In a social network, an edge might represent a friendship between two people, with no additional information.
Weighted Graphs: Each edge has a weight, which can represent various factors like distance (in physical networks), cost (in economic networks), or bandwidth (in computer networks).
Example: In transportation networks, the edges could represent distances between cities.

Advantages of Unweighted Graphs:

Simpler to implement and use.
Efficient for problems where costs or distances are irrelevant.

Disadvantages of Unweighted Graphs:

Cannot be used for problems requiring shortest-path calculations, such as in Dijkstra’s algorithm or the Bellman-Ford algorithm.

How do you check if two vertices are connected in an unweighted graph?

To check if two vertices are connected, you can perform either a Breadth-First Search (BFS) or Depth-First Search (DFS) starting from one vertex. If the second vertex is reached during the traversal, they are connected.

JavaScript Example Using BFS:

class Graph {
    constructor() {
        this.adjList = new Map();
    }

    addEdge(v, w) {
        if (!this.adjList.has(v)) this.adjList.set(v, []);
        if (!this.adjList.has(w)) this.adjList.set(w, []);
        this.adjList.get(v).push(w);
        this.adjList.get(w).push(v);
    }

    isConnected(start, end) {
        let visited = new Set();
        let queue = [start];

        while (queue.length) {
            let node = queue.shift();
            if (node === end) return true;
            visited.add(node);

            for (let neighbor of this.adjList.get(node)) {
                if (!visited.has(neighbor)) queue.push(neighbor);
            }
        }
        return false;
    }
}

let g = new Graph();
g.addEdge(0, 1);
g.addEdge(1, 2);
g.addEdge(2, 3);

console.log(g.isConnected(0, 3));  // Output: true
console.log(g.isConnected(0, 4));  // Output: false

Output:

true
false

Here, BFS is used to check if two nodes (0 and 3) are connected, and the result is true. If we try to check for a non-existent vertex like 4, the result is false.

How are unweighted graphs used in recommendation systems?

In recommendation systems, unweighted graphs are used to model relationships between users and items. Collaborative filtering algorithms, commonly used in platforms like Netflix or Amazon, can be represented as bipartite graphs, where one set of vertices represents users, and the other set represents items (movies, books, products, etc.).

Users are nodes, and items (movies, products) are nodes.
An edge between a user and an item indicates that the user has interacted with or rated the item.

Example in Python (User-Item Recommendation):

class Graph:
    def __init__(self):
        self.graph = {}

    def add_edge(self, user, item):
        if user not in self.graph:
            self.graph[user] = []
        self.graph[user].append(item)

    def recommend(self, user):
        if user in self.graph:
            return self.graph[user]
        return []

g = Graph()
g.add_edge("User1", "MovieA")
g.add_edge("User1", "MovieB")
g.add_edge("User2", "MovieB")
g.add_edge("User2", "MovieC")

print(g.recommend("User1"))  # Output: ['MovieA', 'MovieB']

Output:

['MovieA', 'MovieB']

In this case, User1 has watched MovieA and MovieB, and these items can be recommended based on collaborative filtering.

What is a connected component in an unweighted graph?

A connected component in an unweighted graph is a maximal set of vertices such that there is a path between any pair of vertices in that set. If a graph is not fully connected, it will consist of multiple connected components.

Finding Connected Components: You can use DFS or BFS to identify all connected components in an undirected graph.

How is the degree of a vertex calculated in an unweighted graph?

The degree of a vertex in an unweighted graph is the number of edges connected to it.

In an undirected graph, the degree is simply the count of edges connected to a vertex.
In a directed graph, there are two types of degrees:
In-degree: The number of edges coming into the vertex.
Out-degree: The number of edges going out from the vertex.

C++ Example to Calculate Degree:

#include <iostream>
#include <list>
using namespace std;

class Graph {
    int V;
    list<int> *adj;
public:
    Graph(int V) {


        this->V = V;
        adj = new list<int>[V];
    }

    void addEdge(int v, int w) {
        adj[v].push_back(w);
        adj[w].push_back(v);  // undirected graph
    }

    void degree(int v) {
        cout << "Degree of vertex " << v << " is " << adj[v].size() << endl;
    }
};

int main() {
    Graph g(4);
    g.addEdge(0, 1);
    g.addEdge(0, 2);
    g.addEdge(1, 2);
    g.addEdge(2, 3);

    g.degree(2);
    return 0;
}

Output:

Degree of vertex 2 is 3

The vertex 2 is connected to three other vertices, so its degree is 3.

How are unweighted graphs used in AI for decision-making?

In Artificial Intelligence (AI), unweighted graphs are used to represent state spaces in various decision-making and problem-solving processes. For example, in pathfinding algorithms like A* (A-star) or breadth-first search, each state in the problem space is a vertex, and each possible move between states is an edge.

Puzzle Solving: In games like the 8-puzzle, the goal state and initial state are vertices, and edges represent possible moves. Algorithms like BFS can be used to solve the puzzle efficiently.

How is cycle detection performed in an unweighted graph?

Cycle detection in an unweighted graph is important in many applications, such as deadlock detection in operating systems or ensuring that there are no circular dependencies in software.

DFS can be used for cycle detection in undirected graphs by checking if a back edge exists (an edge that connects a vertex to an ancestor in the DFS tree).

Python Example:

class Graph:
    def __init__(self):
        self.graph = {}

    def add_edge(self, u, v):
        if u not in self.graph:
            self.graph[u] = []
        self.graph[u].append(v)
        if v not in self.graph:
            self.graph[v] = []
        self.graph[v].append(u)

    def is_cyclic_util(self, v, visited, parent):
        visited[v] = True
        for i in self.graph[v]:
            if not visited[i]:
                if self.is_cyclic_util(i, visited, v):
                    return True
            elif parent != i:
                return True
        return False

    def is_cyclic(self):
        visited = {v: False for v in self.graph}
        for i in self.graph:
            if not visited[i]:
                if self.is_cyclic_util(i, visited, -1):
                    return True
        return False

g = Graph()
g.add_edge(0, 1)
g.add_edge(1, 2)
g.add_edge(2, 0)

print(g.is_cyclic())  # Output: True

Output:

True

This graph contains a cycle (0 -> 1 -> 2 -> 0), so the result is True.

How do you perform graph traversal in unweighted graphs using BFS?

Breadth-First Search (BFS) is a traversal algorithm that explores the graph layer by layer, starting from a given vertex. It is often used to find the shortest path in unweighted graphs.

C# Example:

using System;
using System.Collections.Generic;

class Graph {
    private int V;
    private List<int>[] adj;

    public Graph(int V) {
        this.V = V;
        adj = new List<int>[V];
        for (int i = 0; i < V; i++) adj[i] = new List<int>();
    }

    public void AddEdge(int v, int w) {
        adj[v].Add(w);
        adj[w].Add(v);
    }

    public void BFS(int s) {
        bool[] visited = new bool[V];
        Queue<int> queue = new Queue<int>();

        visited[s] = true;
        queue.Enqueue(s);

        while (queue.Count != 0) {
            s = queue.Dequeue();
            Console.Write(s + " ");

            foreach (int n in adj[s]) {
                if (!visited[n]) {
                    visited[n] = true;
                    queue.Enqueue(n);
                }
            }
        }
    }

    static void Main() {
        Graph g = new Graph(4);
        g.AddEdge(0, 1);
        g.AddEdge(0, 2);
        g.AddEdge(1, 2);
        g.AddEdge(2, 0);
        g.AddEdge(2, 3);

        Console.WriteLine("BFS starting from vertex 2:");
        g.BFS(2);
    }
}

Output:

BFS starting from vertex 2:
2 0 3 1

Here, BFS starts at the vertex 2 and explores the graph by visiting neighboring vertices.

Unweighted Graphs: Definition, Applications, Advantages, and Disadvantages

Table of Contents

What is an Unweighted Graph?

Types of Unweighted Graphs

Real-Life Analogy

Applications of Unweighted Graphs

Social Networks

Web Page Link Structures

Computation Flow in Programs

Image Segmentation

State Spaces in Decision-Making

Computer Networks

Real-Time Applications of Unweighted Graphs

Puzzles

Circuit Diagrams

Hamiltonian Graphs and Genome Mapping

Social Media

Advantages of Unweighted Graphs

Simple to Understand and Implement

Efficient in Storage

Optimal for Certain Algorithms

Applicable in Many Domains

Useful for Tree Data Structures

Visualization and Interpretation

Disadvantages of Unweighted Graphs

Cannot Handle Weighted Relationships

Less Informative

Limited Applicability

Implementing Unweighted Graphs in Various Programming Languages

Python Example

C++ Example

C# Example

Additional Implementations in Other Languages:

Conclusion

Related Articles

Read More Articles

Frequently Asked Questions (FAQs) on Unweighted Graphs

What is an unweighted graph?

What is the difference between weighted and unweighted graphs?

How is an unweighted graph represented in a computer?

What are the applications of unweighted graphs?

What algorithms work best with unweighted graphs?

How can you represent an unweighted graph using an adjacency matrix?

What is a directed unweighted graph?

How does BFS work in unweighted graphs?

What is DFS, and how is it used in unweighted graphs?

How can unweighted graphs be used to detect cycles?

How are unweighted graphs applied in web page link analysis?

How are unweighted graphs used in Artificial Intelligence (AI)?

How do you implement graph traversal in unweighted graphs?

What is the adjacency matrix of an unweighted graph?

How do you implement DFS in an unweighted graph?

How do you represent unweighted graphs using adjacency lists?

Can unweighted graphs represent bipartite graphs?

How are unweighted graphs used in network routing?

20. How do you perform topological sorting on an unweighted graph?

How are unweighted graphs represented in memory using data structures?

How are unweighted graphs used in computer networks?

What are the main differences between unweighted and weighted graphs?

How do you check if two vertices are connected in an unweighted graph?

How are unweighted graphs used in recommendation systems?

What is a connected component in an unweighted graph?

How is the degree of a vertex calculated in an unweighted graph?

How are unweighted graphs used in AI for decision-making?

How is cycle detection performed in an unweighted graph?

How do you perform graph traversal in unweighted graphs using BFS?
