Understanding Arrays in Data Structures: A Comprehensive Exploration

Arrays are foundational components in data structures, allowing for the efficient storage and access of multiple elements of the same data type in a structured, organized manner. This article will provide an in-depth exploration of arrays, including how they are used, their properties, and common operations performed on arrays. We’ll also delve into memory allocation and indexing methods to better understand how arrays function behind the scenes.

What is an Array?

An array is a collection of elements, all of which are of the same data type. These elements are stored in contiguous memory locations, meaning each element sits directly next to the previous one in memory. Arrays are commonly used in programming because they provide a simple way to handle collections of data—each element can be accessed directly using its index, making arrays efficient for tasks like data retrieval, sorting, and manipulation.

In C programming, arrays are classified as derived data types. This means that although they are not basic types like int, char, or float, they are built using these primitive types. For instance, if we want to store a series of test scores or a list of product prices, an array can hold this data with each element assigned to a specific index.

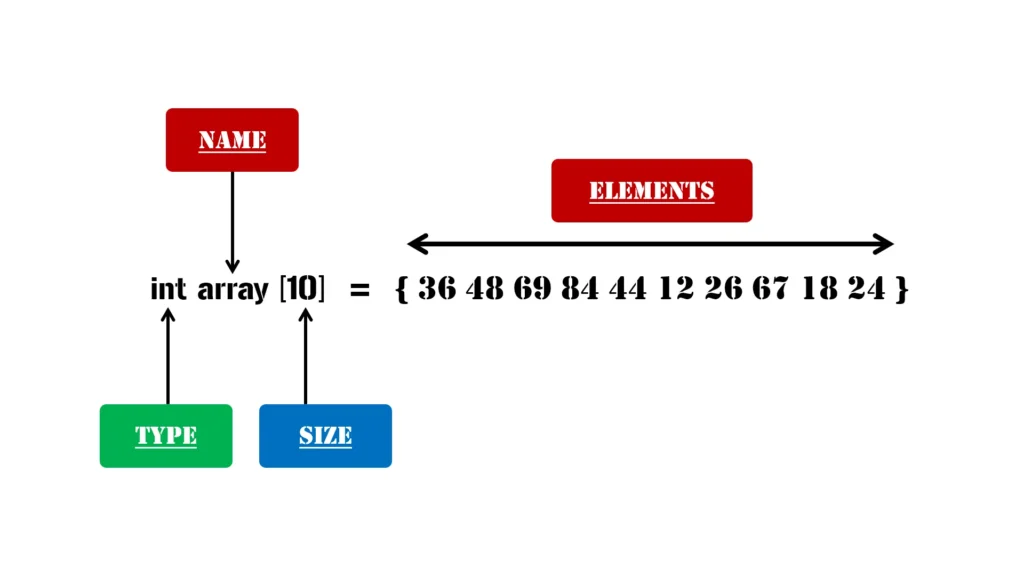

Example of Array Declaration in C

To declare an array of integers in C, you could write:

int scores[6];

This line of code declares an array named scores that can hold up to 6 integer values. Instead of declaring six different variables to hold individual scores, we use this single array. Each element can then be accessed and manipulated using its index, which we’ll cover shortly.

Key Properties of Arrays

Understanding the fundamental properties of arrays can help us appreciate why they’re so effective:

1. Homogeneous Data: Every element in an array must be of the same data type (e.g., int, float). This property enables efficient memory allocation and access.
2. Fixed Size: The length of an array is determined at the time of its declaration, meaning we must specify its size upfront.
3. Contiguous Memory Allocation: Each element in an array is stored sequentially in memory, with the first element starting at the smallest memory address.
4. Random Access: Arrays allow random access to elements, meaning we can retrieve any element directly by using its index.

Why Are Arrays Required?

Arrays solve several key problems in programming:

• Efficient Data Storage: By using arrays, we avoid declaring multiple variables, which can make the code more concise and manageable.
• Faster Data Retrieval: Arrays allow for constant-time access to elements, meaning we can retrieve any value quickly if we know its index.
• Simplified Sorting and Searching: Algorithms for sorting and searching work well with arrays because of their predictable structure and contiguous storage.

Memory Allocation and Indexing in Arrays

Since arrays store data in contiguous locations, each element in an array has a unique address in the main memory. The array’s base address (the address of the first element) is often represented by the array’s name. This base address is used to calculate the memory address of any element within the array.

In the above-illustrated image, an array arr of size 5 is allocated memory using a 0-based indexing approach. The base address of this array is 100 bytes, which corresponds to the location of the first element, arr[0]. Since the data type used requires 4 bytes per element, each item in the array occupies 4 bytes consecutively in memory. Consequently, each subsequent element’s memory address can be derived by adding 4 bytes to the address of the previous element.

Types of Indexing

Different languages allow various indexing methods:

• Zero-Based Indexing: Common in C, Java, and Python, where the first element in an array is at index 0.
• One-Based Indexing: Found in languages like Fortran and MATLAB, where the first element starts at the index 1.
• N-Based Indexing: Some systems and programming languages allow custom starting indices.

For example, if we declare an array in C and want to retrieve the third element, we would access arr[2], given zero-based indexing.

Memory Address Calculation in Arrays

The address of any array element can be calculated using the formula:

Byte address of element A[i]  = base address + size * ( i – first index)

Here:

• Base Address is the memory address of the first element.
• Size is the number of bytes taken up by the data type of the array.
• i is the element’s index.

Basic Array Operations

Let’s discuss some fundamental operations that can be performed on arrays:

1. Traversal

Traversal involves accessing and reading each element in an array from the beginning to the end. In C, a simple for loop can achieve this.

for (int i = 0; i < 6; i++) {
    printf("%d ", scores[i]);
}

This code prints out each element in the scores array. The loop starts from the index 0 and continues until it reaches the last element at the index 5.

2. Insertion

Insertion involves adding a new element at a specific index in the array. In fixed-size arrays, like in C, you may have to shift elements to make room for the new one, especially if you’re inserting it somewhere other than the end.

for (int i = n; i > index; i--) {
    arr[i] = arr[i - 1];
}
arr[index] = newValue;

This code shifts elements one position to the right from the desired index, making room for the newValue to be inserted.

3. Deletion

To delete an element, we simply remove it from the specified index and shift all subsequent elements one position to the left.

for (int i = index; i < n - 1; i++) {
    arr[i] = arr[i + 1];
}

This code removes the element at the index by copying each following element to the left, effectively overwriting the deleted element.

4. Search

Searching in an array can be done in two main ways: linear search and binary search. Linear search iterates over each element until it finds a match, while binary search is faster but requires the array to be sorted.

Example of Linear Search in C:

int searchValue = 5;
for (int i = 0; i < 6; i++) {
    if (scores[i] == searchValue) {
        printf("Value found at index %d", i);
        break;
    }
}

This code searches for searchValue within the array and prints its index if found.

5. Update

To update an element at a specific index, simply assign a new value to that index.

scores[3] = 95;

Here, we update the element at the index 3 to the value 95.

Conclusion

Arrays are powerful data structures that simplify many aspects of programming, from data storage to data manipulation. Their contiguous memory allocation, random access, and straightforward design make them highly efficient for a wide range of applications. While arrays have limitations—such as their fixed size and homogeneity—they are indispensable in many programming scenarios.

Understanding and mastering arrays is fundamental for any aspiring programmer, as they serve as the building blocks for more complex data structures like lists, matrices, and tables, laying a foundation for data handling in more advanced programming and algorithms.

Frequently Asked Questions (FAQs) About Arrays in Data Structures

What is an Array in Data Structures, and Why is it Important?

An array is a linear data structure that stores a collection of elements of the same data type in contiguous memory locations. Arrays are crucial because they allow efficient access to elements through their index numbers, making retrieval faster and reducing memory wastage. This feature is particularly useful when dealing with large datasets, as it provides a simple way to group similar data under one name and access each item by its position in the memory.

Arrays are widely used in computer science and programming because they support operations like sorting, searching, and iteration, which are essential in algorithms. They are foundational in understanding other data structures like lists, stacks, and queues. Arrays allow us to handle a fixed number of elements and perform repetitive tasks efficiently, which makes them important for applications like data analytics, game development, and systems programming.

How Do You Declare an Array in C Programming

In C programming, declaring an array involves specifying its data type, name, and size. For example, to declare an array of integers with a size of 5, you would write:

int numbers[5];

Here:

• int is the data type of each element in the array, meaning the array will store integers.
• numbers is the name of the array, which will represent the base address of the array in memory.
• [5] indicates the size of the array, which is fixed and specifies that this array can hold five elements.

In C, arrays are zero-indexed, meaning the first element is accessed using numbers[0], the second with numbers[1], and so on. Declaring an array in this manner allows us to perform batch operations on each element without creating separate variables for each.

What Are the Key Properties of an Array?

Arrays have several important properties that make them useful in programming:

• Fixed Size: The size of an array is specified at the time of declaration and remains constant. This makes arrays less flexible but highly efficient in terms of memory management.
• Homogeneous Elements: All elements in an array must be of the same data type. This property ensures that each element occupies an equal amount of memory, allowing for efficient memory allocation.
• Contiguous Memory Allocation: Arrays store elements in contiguous memory locations, meaning each element is stored directly after the previous one. This allows random access to any element using its index.
• Indexed Access: Each element can be accessed using an index. For example, arr[3] directly retrieves the fourth element in the array. This enables constant-time access for read and write operations.

These properties make arrays ideal for tasks that require fast access to elements and a fixed number of items, such as sorting algorithms and lookup tables.

How Does Array Memory Allocation Work?

When an array is created, memory is allocated to hold all elements in contiguous blocks. The starting location of this block, known as the base address, is assigned to the array name, which represents the address of the first element. Each element’s address can then be calculated based on this base address.

The formula for finding the memory address of an element in an array A is:

$$
\text{Address of } A[i] $$ $$ = \text{Base address} + (\text{Size of element} \times i)
$$

In this formula:

• Base address is the address of the first element A[0].
• Size of element is the memory in bytes that each array element takes (e.g., int might take 4 bytes).
• i is the index of the element we want to access.

Contiguous memory allocation allows for faster data retrieval and efficient memory utilization, which are critical for performance-intensive applications.

What Are the Different Types of Indexing in Arrays?

Indexing determines how we access elements within an array, with different systems using different types:

• Zero-Based Indexing: The first element in the array is at index 0. This type is widely used in languages like C, Java, and Python. For example, in an array arr, the first element is arr[0], the second is arr[1], and so on.
• One-Based Indexing: The first element is accessed at the index 1, which is common in languages like Fortran and MATLAB.
• Custom Indexing: Some systems allow specifying a custom starting index, like n instead of 0 or 1, though this is less common.

Zero-based indexing is preferred in most programming languages because it allows easier calculation of element addresses using pointer arithmetic.

What Are the Basic Operations Performed on Arrays?

Arrays support several basic operations that are fundamental in data handling:

• Traversal: Accessing each element in an array sequentially. For example, in C, we can traverse an array with a for loop.
• Insertion: Adding an element at a specified index. In fixed-size arrays, inserting in the middle requires shifting elements to create space.
• Deletion: Removing an element from a specific index, which again requires shifting to fill the gap.
• Search: Finding an element using its index or value. Linear search is used for unsorted arrays, while binary search is faster for sorted arrays.
• Update: Modifying an element at a given index by directly assigning a new value.

These operations are essential in algorithm design and data processing, as they allow for efficient manipulation of data.

What Is the Difference Between Static and Dynamic Arrays?

• Static Arrays: Declared with a fixed size at compile time, meaning they cannot change size during program execution. For example, in C, int numbers[5] is a static array that can hold exactly 5 integers.
• Dynamic Arrays: Can change size during runtime, providing more flexibility. They are often implemented using pointers and memory allocation functions like malloc() in C.

Dynamic arrays are commonly used when the exact amount of data isn’t known in advance, such as in data structures like ArrayLists in Java or Vectors in C++.

How Do You Implement Searching in Arrays?

Searching within an array can be achieved using various algorithms, depending on whether the array is sorted or unsorted:

• Linear Search: Checks each element sequentially until the target is found or the end is reached. Suitable for unsorted arrays.

  int search(int arr[], int size, int target) {
      for (int i = 0; i < size; i++) {
          if (arr[i] == target) return i;
      }
      return -1; // Element not found
  }

• Binary Search: Efficient for sorted arrays. It divides the array in half, eliminating half of the remaining elements with each step, leading to O(log n) time complexity.

Binary search requires sorted arrays, making it ideal for applications with large, ordered datasets, like database indexing.

How Does Array Access Time Differ from Other Data Structures?

Arrays provide constant-time access (O(1)) to elements because each element’s address is calculated directly from its index and the base address. This allows for quick retrieval compared to other data structures like linked lists, where elements must be traversed sequentially.

In comparison:

• Linked Lists have O(n) access time for general elements, as each node points to the next, requiring traversal to reach a specific element.
• Hash Tables achieve average O(1) access time through hash functions, but collisions can degrade performance to O(n) in the worst case.

For operations that require frequent random access, arrays are generally preferred, while linked lists or hash tables are used for tasks involving frequent insertion or deletion.

What Are the Advantages and Limitations of Arrays?

Arrays have several advantages but also come with certain limitations:

Advantages:

• Direct Access: Arrays allow O(1) access to any element using its index, making them ideal for tasks like lookup tables.
• Memory Efficiency: Arrays use contiguous memory, which minimizes overhead and improves cache performance.
• Simplicity: Arrays are straightforward to implement and understand, making them suitable for beginners.

Limitations:

• Fixed Size: Static arrays have a fixed size, meaning they cannot grow or shrink during execution.
• Insertion and Deletion Overheads: Adding or removing elements, especially in the middle, requires shifting elements, making these operations less efficient (O(n)).
• Homogeneity: Arrays can only hold elements of a single data type, limiting flexibility compared to structures like linked lists and hash tables.

Understanding these strengths and weaknesses helps developers choose when to use arrays and when to consider alternative data structures for specific applications.
